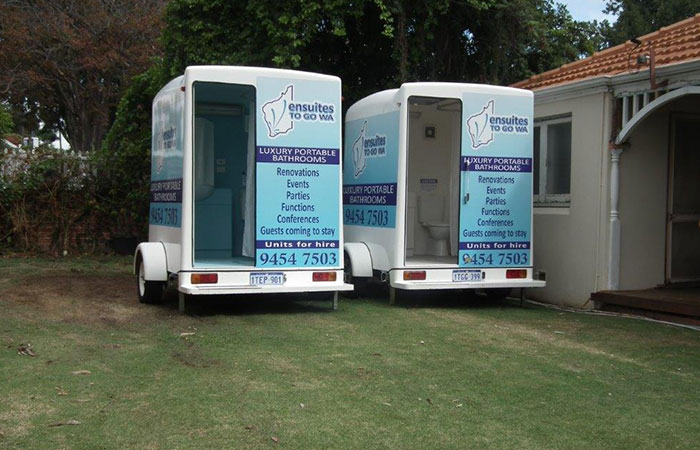

LUXURY PORTABLE ENSUITE
including toilet, hand basin and shower
Total width (over wheel arches) 2260mm
Total length (including draw bar) 4050mm
Total height 2650mm
Power supply 2 x 10 amp 240 volt
Max pumping distance 50m @ 1m head
Max pumping height 5m at unit
The waste is discharged directly into the existing sewer or septic via an O.R.G.D.T. or similar point for a temporary installation situation.
NO WASTE OR WATER IS DISCHARGED ONTO THE GROUND!
POWER SUPPLY
The 240 volt power connection is for the macerating pump and the 50 litre electric hot water supply and the light/fan.
WATER
Water is made available to the ensuite from a domestic supply (garden tap) with the use of a 12mm human consumption grade hose with a standard click fitting (supplied with the unit).

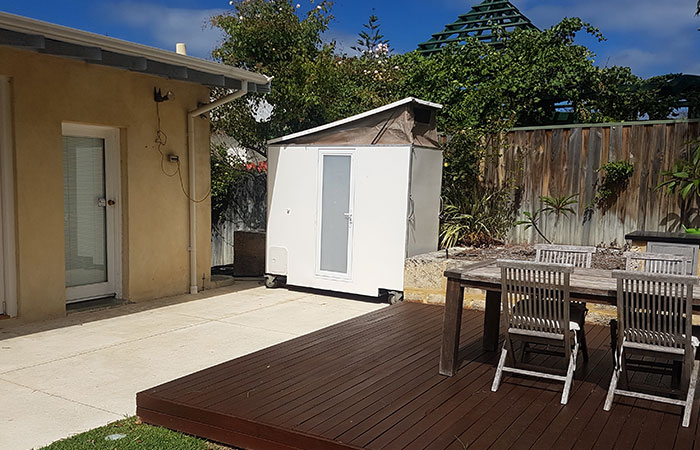

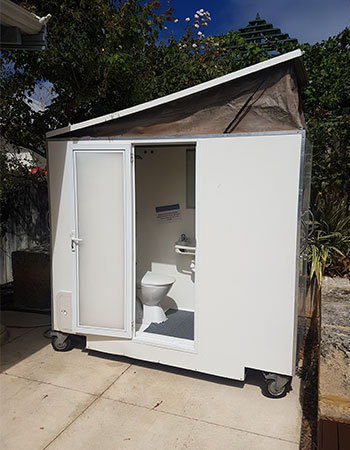

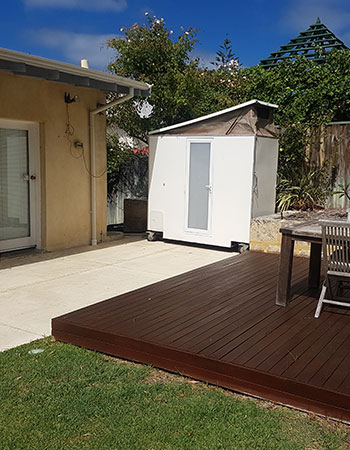

COMPACT PORTABLE ENSUITE
with toilet, hand basin and shower.
The Compact Portable Ensuite is a smaller version of the full-sized Luxury Portable Ensuite, with all the same luxury features.
Ideal for sites with low or narrow access, this unit is the best choice for tight spaces. Once it has been unloaded from our trailer or cane truck, it’s pushed into place, under a carport, into a shed or garage (height opening must be 2050mm), up a pathway (must be 1 metre wide) or into a backyard, with the only requirement being a smooth solid pavement.
Once in position, the pop-up roof is extended to its full height and it’s ready to use.
Product length: 2250mm
Product width: 900mm
Product height: 2000mm (closed position)
Product height: 2400mm Open (roof up)
Power supply 2 x 10amp 240 volt
Max pumping distance 50m @ 1m head
Max pumping height 5m at unit
The waste is discharged directly into the existing sewer or septic via an O.R.G.D.T. or similar point for a temporary installation situation.
NO WASTE OR WATER IS DISCHARGED ONTO THE GROUND!
POWER SUPPLY
The 240 volt power connection is for the macerating pump and the 50 litre electric hot water supply and the light/fan.
WATER
Water is made available to the ensuite from a domestic supply (garden tap) with the use of a 12mm human consumption grade hose with a standard click fitting (supplied with the unit).

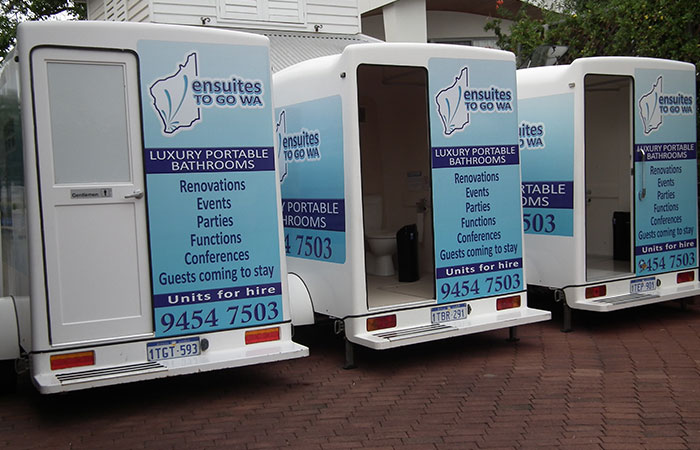

TWIN LUXURY TOILET UNIT
includes two dual flush toilets, basin and hygiene bins
Total width (over wheel arches) 2260mm
Total length (including draw bar) 4050mm
Total height 2650mm
Power supply 2 x 10 amp 240 volt
Max pumping distance 50m @ 1m head
Max pumping height 5m at unit
- Dual flushing toilets with concealed cistern
- A hand basin in each toilet
- Leaver action tap to basin
- Large mirror
- Electric hand dryers
- Liquid soap dispensers
- LED light over mirror
- Dual LED external lights
- Hygiene bins
- Unique circular handrail at entrance
- Roof ventilation
- Walls finished in a marble patterned porcelain sheeting for a luxury look.
The waste is discharged directly into the existing sewer or septic via an O.R.G.D.T. or similar point for a temporary installation situation.
NO WASTE OR WATER IS DISCHARGED ONTO THE GROUND!
POWER SUPPLY
This unit requires 2 x 240v power points, one connection is for the waste pump and the other is to run the electric hand dryers.
WATER
Water is made available to the ensuite from a domestic supply (garden tap) with the use of a 12mm human consumption grade hose with a standard click fitting (supplied with the unit). This unit has no hot water.
Drain
2x Standard 10amp power points
Drain
Garden tap
Drain
FREQUENTLY ASKED QUESTIONS
PORTABLE BATHROOMS PERTH
Q: What do we need for the unit to work?
A: All you need is access to power (2x standard 10 amp power points), water (garden tap), and access to the existing sewer or a holding tank.
Q: Does the unit have to be installed by licensed plumber or electrician?
A: Because the unit is installed in a temporary situation and there are no fixed connections to the existing services, this is not a requirement.
Q: Can I discharge the waste into a septic sewer system?
A: You can discharge the waste into any septic or sewer system available to you.
Q: How far can the unit be from the point of discharge to the sewer?
A: The unique macerating pump installed in the unit allows you to position the unit up to 10 metres below, and 50 metres from the point of discharge from the sewer.
Q: Do we need chemicals?
A: Because the waste is discharged directly into the sewer there are no smells and no need for the application of any chemicals.
Q: Can I use the unit in a remote situation?
A: Although the unit was designed for use where services are readily available you would be able to provide the same by way of a generator for power, a tank with a pressure pump for water supply and a holding tank for the waste which you can remove later.
Any other questions? Don’t hesitate to give us a call on 0429 454 750.
